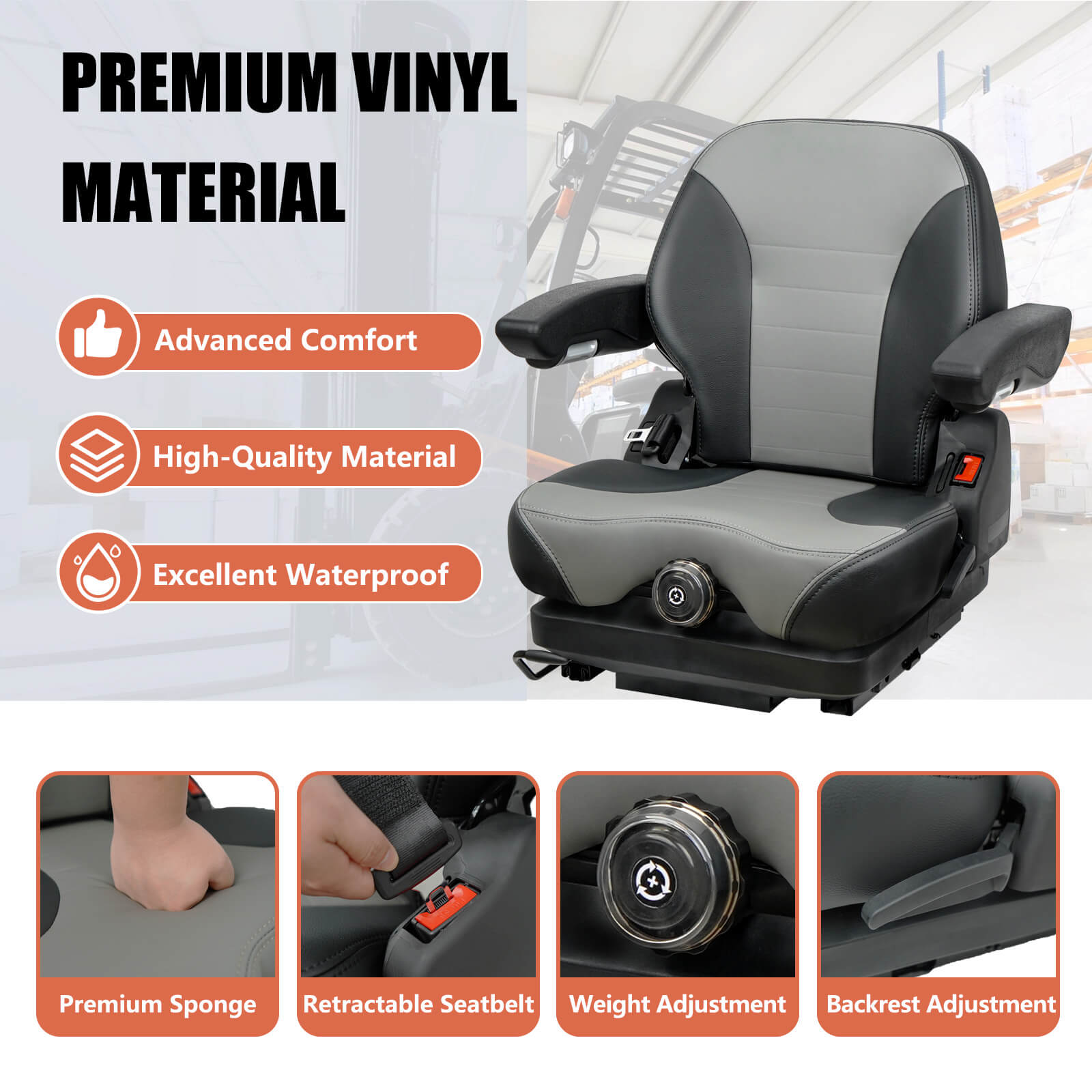

Durable fabric or vinyl covering

Low-profile mechanical suspension with 2" stroke

Vacuum formed covers with steel frame

Contoured foam cushions to ensure operator comfort

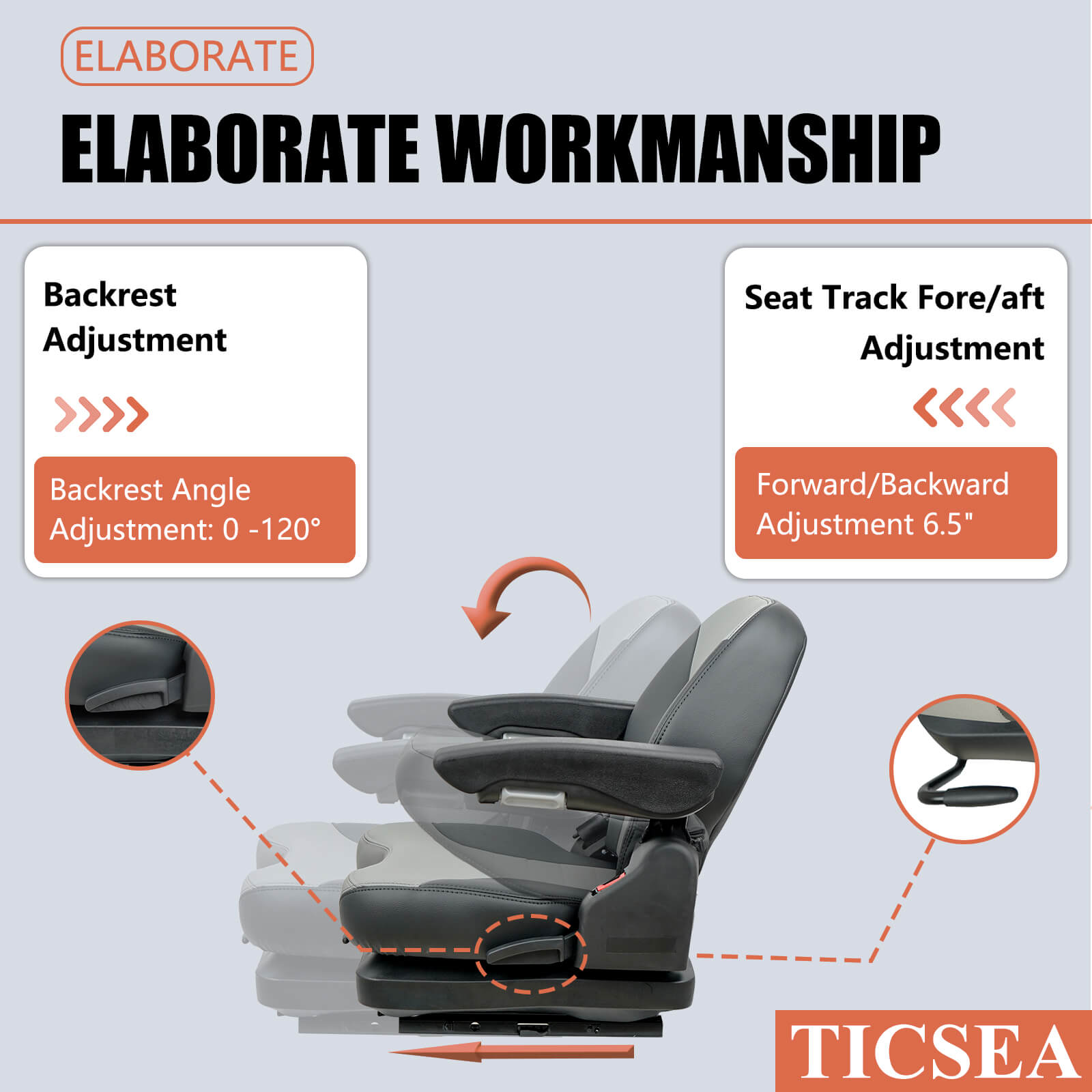

Adjustable backrest 75° forward and 30° back adds comfort and versatility

Fold-down back cushion for easy access behind the seat and to protect the seat from outside weather

Comes standard with adjustable fold-up armrests

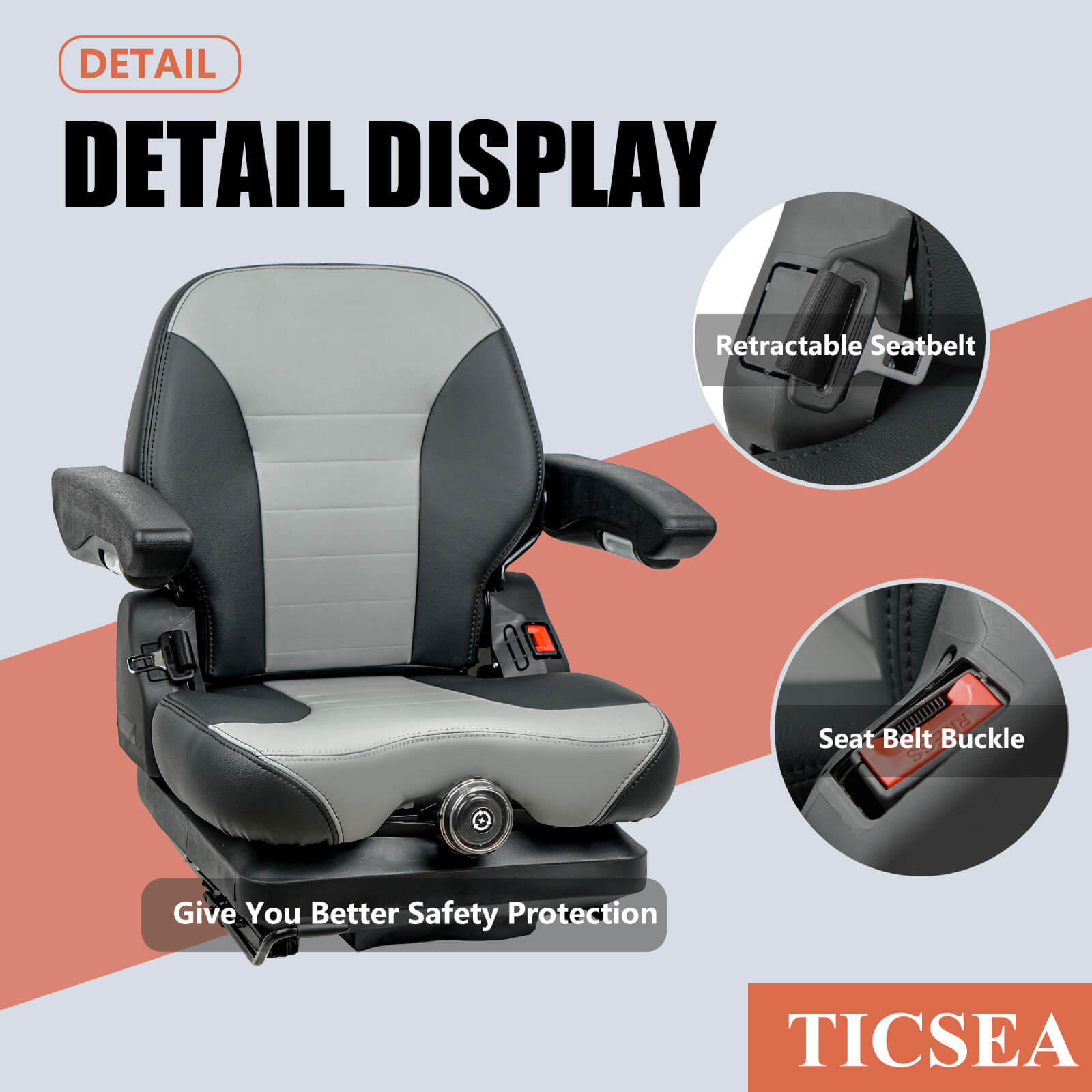

Retractable seat belt with interlock switch included for added safety

Storage pouch to store owner’s manual and other valuables

110 - 300 lb weight adjustment with visualized high-end knob

6.5" maximum fore/aft single-lock slide rail travel

Comes standard with operator presence switch

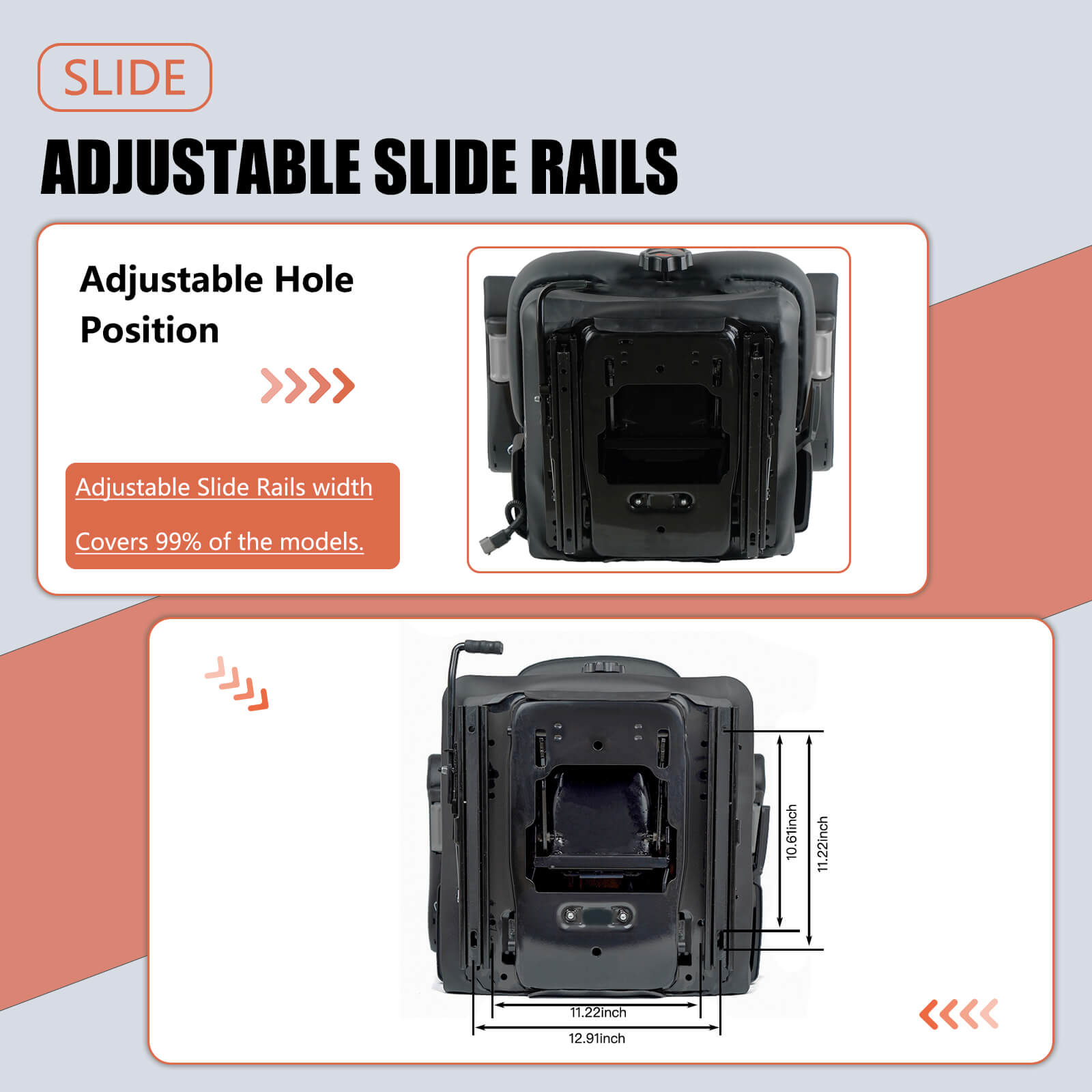

Slides can be mounted laterally at 11.25", 12.59" or 12.91"

Rubber molded suspension cover to keep components free of dust and dirt

Mounting patterns include (W x L): 12.875" and 11.25" side-to-side

Item Model Number: Tractor Suspension Seat

Color Options: Black / Gray / White

Mounting Compatibility: Universal

Adjustable Slide Range: 150mm / 6 in

Reclining Backrest: Included

Backrest Angle Adjustment: 0° to 120°

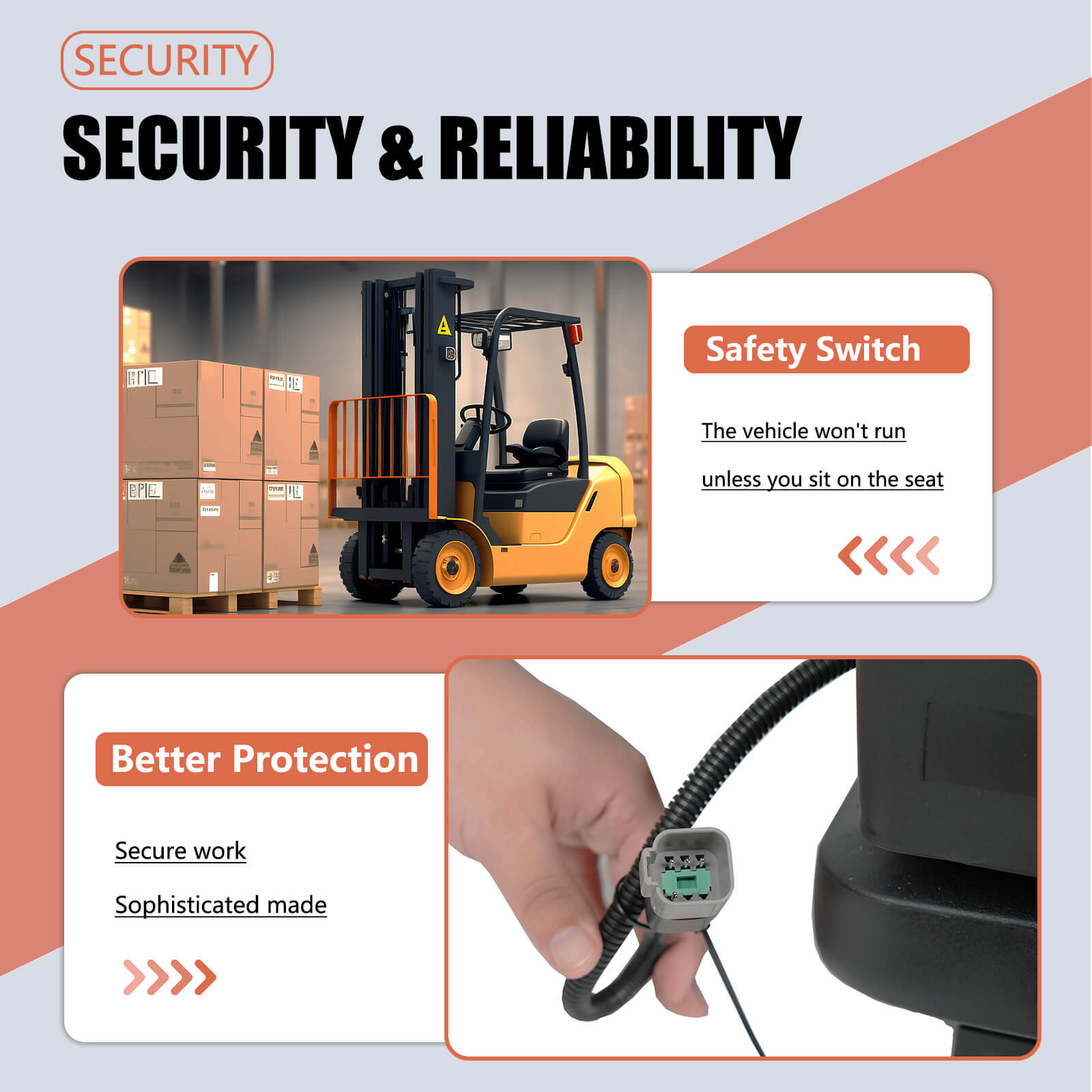

Safety Switch: Equipped with seat sensor

Seat Belt: 2-point retractable seat belt

Armrests: Premium adjustable armrests

Storage Pouch: Yes

Main Materials: Q235 steel, PVC high-resilience polyurethane foam

Product Weight: 25.7 kg / 54 lbs

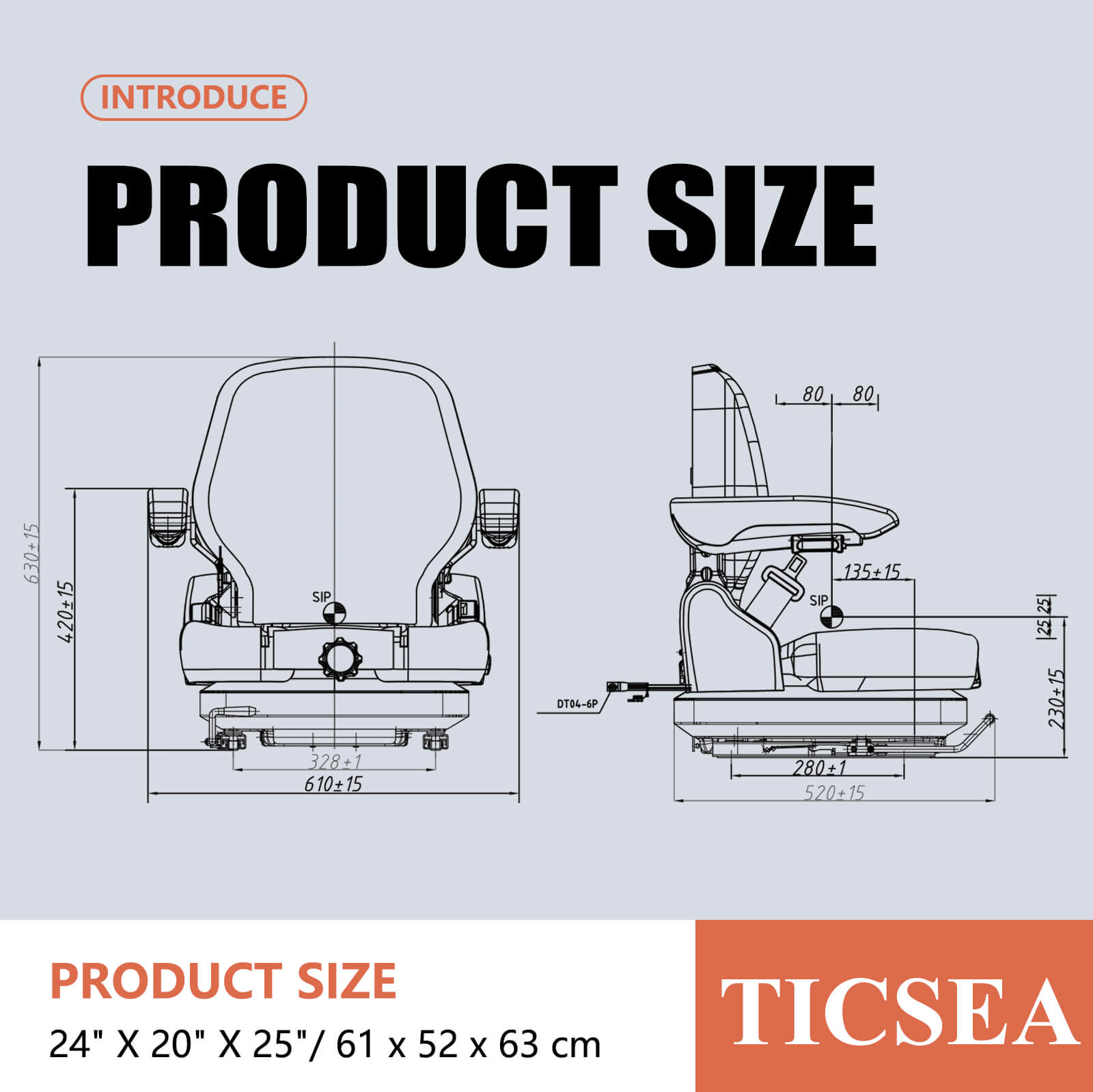

Dimensions: 540 x 600 x 630 mm / 21.26 x 23.62 x 24.8 in

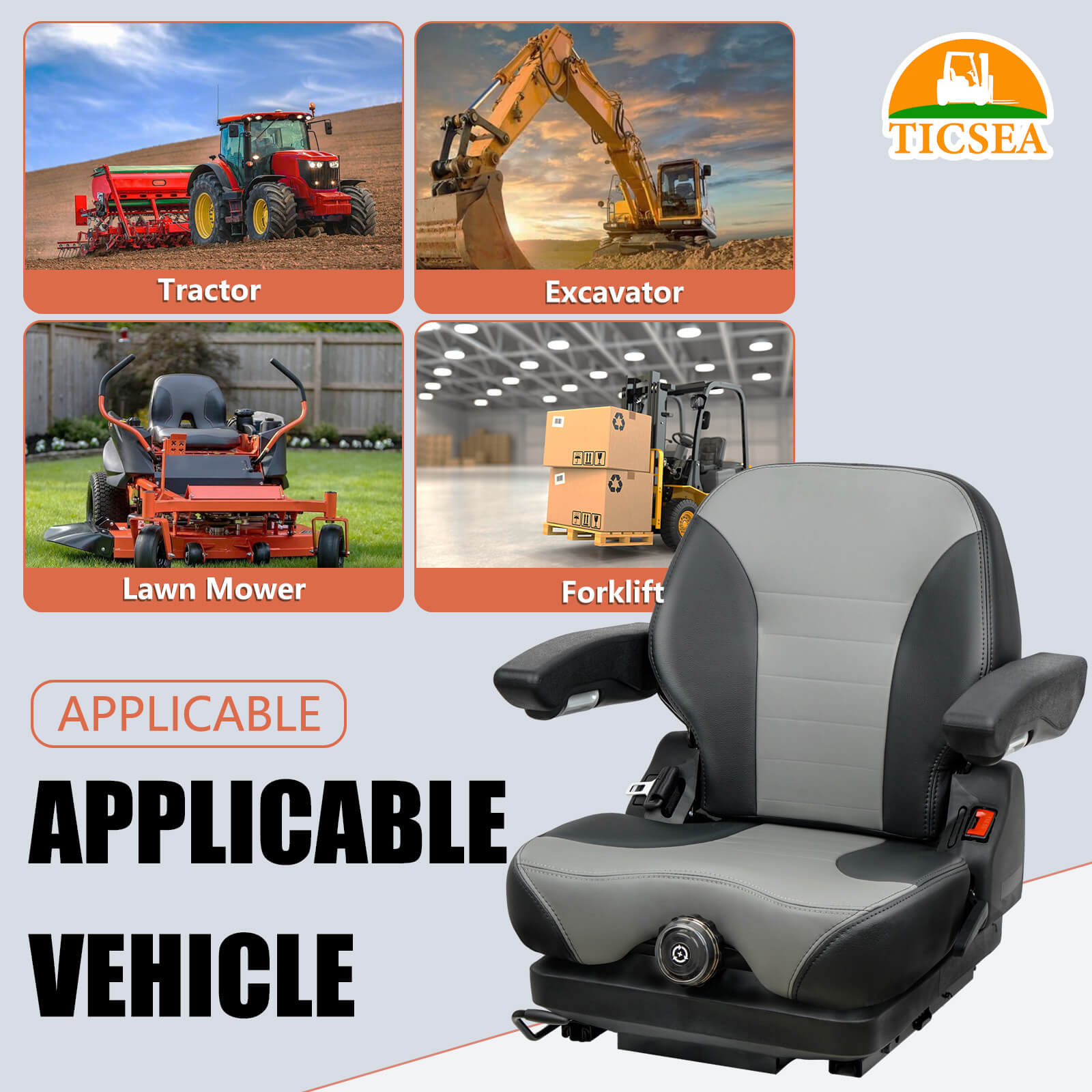

Multiple Applications for Compact Tractor, Forklift, Industrial, Material Handling, Skid Steer, Small Construction and Turf Equipment. Ideal for Ariens®, Cub Cadet®, Dixon®, Exmark®, Ferris®, Grasshopper®, Gravely®, Hustler®, John Deere®, Kubota®, New Holland®, Simplicity®, Walker® and Woods® Lawn Mowers, Bobcat® Excavators, Skid Steers, Utility Vehicles, and Wheel Loaders, Case® Dozers, Rollers and Skid Steers, Caterpillar® Excavators, Forklifts, Rollers, Skid Steers, Telehandlers and Wheel Loader, Crown® Forklifts, Ditch Witch® Trenchers, John Deere® Compact Utility Tractor and Skid Steers, and Volvo® Articulated Dump Truck:

May Fit Some Models - Check Bolt Pattern to Ensure Proper Fit (W x L - 12.875" and 11.25" side-to-side)

Ariens® Lawn Mower: 2148

Bobcat® Excavators, Skid Steers, Utility Vehicles, and Wheel Loaders:

• Excavators (Model Years 2017 & Newer): E35, E42, E50, E60, E32I, E35I
• Skid Steers: 463, 751C, 753G, 763, 763G, 773, 773G, 773GT, 853, 863, 863F, 863G, 863H, 863HF, 864, 864EH, 864F, 864G, 864H, 864T, 873, 873C, 873F, 873G, 883, A300, S70, S100, S130 (SN 527411001 and A00E11001 & Above), S150, S160, S160HF, S175, S175HF, S185, S185HF, S205, S220, S220H, S250, S250HF, S250K, S300, S330, S510 (SN A3NK11001 and AZN411001 & Above), S530 (SN A7TW11001 and AZN711001 & Above), S550 (SN A3NM11001 and AZN911001 & Above), S570 (SN A7U811001 and AZNC11001 & Above), S630 (SN B2L511001 & Above), S650 (SN S1ML11001 and 1MLS11001 & Above), T110, T140, T180 (SN 527511001, 527611001 and A3LL11001 & Above), T190 (SN 519411001, 527011001, 527811001, 531611001, 531711001 and A3LN11001 & Above), T190G, T190H, T190K, T200, T200G, T200H, T250, T250G, T250H, T300 (SN 522011001, 525411001, 532111001, A5GU11001 and A5GV11001 & Above), T300ACS, T300G, T300H, T300K, T320, T320H, T450 (SN AUVP11001 and B1EM11001 & Above), T550 (SN A7UJ11001 and AJZV11001 & Above), T590 (SN A3NR11001 and A3N511001 & Above), T630 (SN A7PU11001 and AJDT11001 & Above), T650 (SN A3P011001, A3P111001, 1MLT11001 and B2KZ11001 & Above), T750 (SN ANKA11001 and ATF611001 & Above), T870
• Toolcat Utility Vehicles: 5600, 5610
• Wheel Loaders: L23, L28

Replaces Bobcat® Skid Steer Part Numbers: 6675319, 6675321, 7149786, 7167603

Case® Dozers, Rollers and Skid Steers:

• Dozers (Equipment or Seat Modifications May Be Required for Proper Fit): 1150H, 1150K
• Rollers: DV201, DV202, DV204
• Skid Steers: 40XT, 60XT, 70XT, 75XT, 85XT, 90XT, 95XT, 410, 420, 420CT, 430, 435, 440, 440CT, 445, 445CT, 450, 450CT, 465, 1530, 1830, 1835, 1835B, 1835C, 1838, 1840, 1845, 1845B, 1845C, 1845S, SR130, SR150, SR175, SR200, SR220, SR250, SV185, SV250, SV300, TR270, TR320, TV380

Caterpillar® Excavators, Forklifts, Rollers, Skid Steers, Telehandlers and Wheel Loader:

• Excavators (Equipment or Seat Modifications May Be Required for Proper Fit): 301.6C, 301.8C, 302.5C, 303.5C CR, 303.5D CR, 305C CR, 305D CR, 305.5D CR
• Forklifts (Equipment or Seat Modifications May Be Required for Proper Fit): C3000, C3500, C4000, C5000, C5500, C6000, C6500, CC4000, DP40K, DP40KL, DP45K, DP50K, DP70E, E10000 36V, E10000 48V, E12000 36V, E12000 48V, E3000 36V, E3000 48V, E3500 36V, E3500 48V, E4000 36V, E4000 48V, E5000 36V, E5000 48V, E5500 36V, E5500 48V, E6000 36V, E6000 48V, E6500 36V, E6500 48V, E7000 36V, E7000 48V, E8000 36V, E8000 48V, EC4000 36V, EC4000 48V, ET3000 36V, ET3000 48V, ET3500 36V, ET3500 48V, ET4000 36V, ET4000 48V, EX5000 36V, EX5000 48V, GC35K, GC40K, GC40K PRHSTR, GC40K STR, GC45K PRHSTR, GC55K, GC55K PRSTR, GC55K STR, GC60K, GC70K, GC70K PRH, GC70K PRHSTR, GC70K STR, GP40K, GP40KL, GP45K, GP50K, KC45KSWB, P17500, P20000, P22000, P26500, P3000, P30000, P33000, P3500, P36000, P4000, P4000-D, P5000, P5500, P5500-D, P6000, P6000-D, P6500, P6500-D, P7000, P7000-D, PC4000
• Rollers (Equipment or Seat Modifications May Be Required for Proper Fit): CB14, CB14 XW, CB22, CB24, CB34, CB34 XW, CB54 XW, CC24, CC34
• Skid Steers: 246C, 256C, 262C, 272C, 277C, 287C, 289C, 297C, 299C
• Telehandlers: TH225, TL642, TL943, TL1055, TL1255
• Wheel Loader: 904H

Crown® Forklifts: FC4500, SC4500

Cub Cadet® Lawn Mowers: S6031, S7237
Replaces Cub Cadet® Part Number: 2004228

Ditch Witch® Trenchers: R65, V30

Dixon® Lawn Mowers: Grizzly, Ram Mag, Speed ZTR, ZTR 4516K

Exmark® Lawn Mowers: Front Runner, Lazer Z, Lazer Z Advantage, Lazer Z EFI

Ferris® Lawn Mowers: IS500Z, IS1500Z

Grasshopper® Lawn Mowers: 614, 718, 720K, 7210

Gravely® Pro Master, Pro Ride and Pro Turn Series Lawn Mowers:

• Lawn Mowers: 152Z, 252Z, 260Z, RapidXZ
• Pro Master Series: 148i, 160i, 252HXDZ, 252M, 252XDZ, 260H, 260HXDZ, 260HXDZ LPG, 260M, 260MXDZ, 266H, 266HXDZ, 272H, 272HXDZ, 320, 1252i
• Pro Ride Series: 254, 260, 266
• Pro Turn Series: 148, 152, 160, 252, 260, 266

Replaces Gravely® Part Numbers: 045230, 046220, 03947200, 04052900, 09112400

Hustler® Lawn Mowers: Fastrak 54, Fastrak Super Duty 60, Sport 48, Super Z60, Super Z66, Z66

John Deere® Compact Utility Tractor, Lawn Mowers and Skid Steers:

• Compact Utility Tractor (Drilling Required): 4100
• Lawn Mowers (Drilling Required): 318, 727A, 997 Z-Trak, 1420, 1435, 1445, 1545, 1550, 1565, 1570, 1575, 1580, F725, Z2820A, Z840A
• Skid Steers (Will Fit and Bolt Into Skid Steers, but Wire Splicing is Required): 240, 250, 260, 270, 280, 312GR, 313, 314G, 315, 316GR, 317, 317G, 318D, 318E, 318G, 319D, 319E, 320, 320D, 320E, 323D, 323E, 324E, 325, 326D, 326E, 328, 328D, 328E, 329D, 329E, 330G, 331G, 332, 332D, 332E, 332G, 333D, 333E, 333G, CT315, CT322, CT332

Replaces John Deere® Skid Steer Part Numbers:AT315073, AT344971, AT347476, AT361224, AT405894, AT434492

Kubota® Lawn Mowers:F2880, ZD221, ZD323, ZD326, ZG227, ZG327

New Holland® Lawn Mower (Drilling in Application Mounting Deck is Required): MC22

Simplicity® Lawn Mowers (Drilling in Mounting Deck is Required for Cobalt Model): Cobalt, ZT3000 24hp

Volvo® Articulated Dump Truck: A25BM

Walker® Lawn Mowers: MDD (SN 85932-Present), MTL (SN 85932-Present), MTLEFI (SN 85932-Present)
Replaces Walker® Part Numbers: 6103-14 and 6103-24

Woods® Lawn Mowers (Drilling in Mounting Deck is Required): 5140, 6170, 6180

Return Policy: Voluntary 30-Day Return Guarantee: You can return many items you have purchased within 30 days following delivery of the item to you. Our Voluntary 30-Day Return Guarantee does not affect your legal right of withdrawal in any way.

Product Warranty: 12 months parts
